Product Details:
Payment & Shipping Terms:
|
| Body: | Material Aluminum | RA: | >70 Or 80 |
|---|---|---|---|
| Fixture Color: | Grey, White And Black | Input Voltage: | 220 V |
| Working Ambient Temperature: | -30℃ - 50℃ | IP: | 66 |
| Lamp Power: | 400w | ||
| Highlight: | 400w Stadium Led Flood Lights,High Luminous Led Stadium Flood Light,IP66 Led Outdoor Stadium Lighting |
||

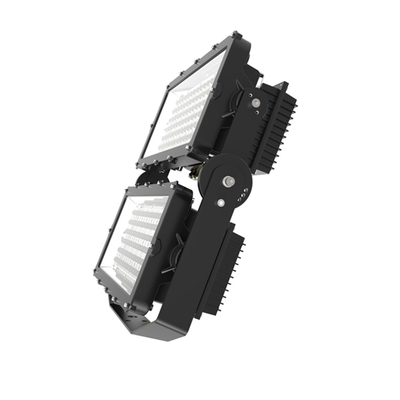

400w Sport Led Flood Lights For Outdoor Stadium Football Tennis With high luminous led chip
Product Description:
| Product Code | HP-01-400 | |
| Input Wattage | 400W | |
| Color Temperature | 3000-6500K | |
| Luminous Flux | 46000-50000lm | |
| Input Voltage | AC90-305V | |
| Frequency Range | 50/60Hz | |
| Power Factor | PF≥0.95 | |
| color rendering index | Ra≥70 | |
| Temperature of Working Condition | -40--50℃ | |
| Humidity of Working Condition | 20%-90%RH | |
| LED Lifetime | 50000h | |
| Protectin Grade | IP66 | |
| Installation Height | 15-20m | |
| Net Weight | 24.0kg | |
| Gross Weight | 24.8kg | |
| Packing Size | 620X660X240mm | |
LED Engine Module
LED life time of 30,000+ hours
· High power integrated packaging LED chips, 120° beam spread available
· Minimum CRI of 70, custom CRI available
· Operating temp: -30º C to +60º C
· No toxic chemicals / ROHS compliant
· Low Tj for long life, low lumen depreciation
· CE certified, meets ROHS standards
· Eligible for Rebates, Design Lights Consortium® Qualified*
· 50-80% energy savings
· Manufactured in the China
· Standard distribution is Type V, others distributions available
Electrical
· Standard AC input of 85-265v VAC, up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
· Licensed electrician required for installation
Housing
· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat finish
· High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors available
